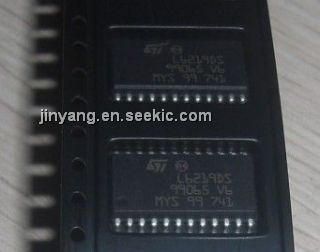

E-L6219DS013TR

E-L6219DS013TRbipolar monolithic integrated circuit, 50 V, 1 A, SOIC-24

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	2.00 / Piece
500 ~ 1000 :	1.80 / Piece
1000 ~ 3000 :	1.50 / Piece

PartNumber:: E-L6219DS013TR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 200/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Wendy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-01

From Other Seller

Part Number:E-L6219DS013TR
US $1.50 - 2.00
Stepper motor driver E-L6219DS013TR

US $0.64 - 0.98 / Piece
(0) Remove
Quantity:

piece

Product Summary

The E-L6219DS013TR is a bipolar monolithic integrated circuit intended to control and drive both winding of a bipolar stepper motor or bidirectionally control two DC motors. The E-L6219DS013TR with a few external components form a complete control and drive circuit for LS-TTL or microprocessor controlled stepper motor system. The power stage is a dual full bridge capable of sustaining 46V and including four diodes for current recirculation. Wide range of current control from 750 mA (each bridge) is permitted by means of two logic inputs and an external voltage reference. A phase input to each bridge determines the load current direction. A thermal protection circuitry disables the outputs if the E-L6219DS013TR temperature exceeds safe operating limits.

Parametrics

E-L6219DS013TR absolute maximum ratings: (1)Vs Supply voltage: 50 V; (2)IO Output current (peak): ±1 A; (3)IO Output current (continuous): ±0.75 A; (4)Vss Logic supply voltage: 7 V; (5)Vin Logic input voltage range: -0.3 to +7 V; (6)Vsense Sense output voltage: 1.5 V; (7)Tj Junction temperature: +150℃; (8)Top Operating temperature range: -20 to +85℃; (9)Tstg Storage temperature range: -55 to +150℃.

Features

E-L6219DS013TR features: (1)Able to drive both windings of bipolar stepper motor; (2)Output current up to 750 mA each winding; (3)Wide voltage range: 10 V to 46 V; (4)Half-step, full-step and microstepping mode; (5)Built-in protection diodes; (6)Internal PWM current control; (7)Low output saturation voltage; (8)Designed for unstabilized motor supply voltage; (9)Internal thermal shutdown.
