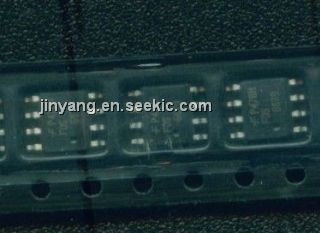

FDS6679

P-Channel MOSFET, 30V, 1.0 W, 13A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.55~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	0.65 / Piece
100 ~ 500 :	0.60 / Piece
500 ~ 1000 :	0.55 / Piece

PartNumber:: FDS6679

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 300/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Wendy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-01

From Other Seller

Part Number:FDS6679
US $0.55 - 0.65
Quantity:

piece

Product Summary

The FDS6679 is a P-Channel MOSFET. It has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers, and battery chargers.

Parametrics

FDS6679 absolute maximum ratings: (1)VDSS Drain-Source Voltage: –30V; (2)VGSS Gate-Source Voltage: ±25V; (3)ID Drain Current: –13A; (4)Power Dissipation for Single Operation: 1.0 W; (5)TJ, TSTG Operating and Storage Junction Temperature Range: –55 to +175℃.

Features

FDS6679 features: (1)–13 A, –30 V. RDS(ON) = 9 mW @ VGS = –10 V RDS(ON) = 13 mΩ @ VGS = – 4.5 V; (2)Extended VGSS range (±25V) for battery applications; (3)High performance trench technology for extremely low RDS(ON) ; (4)High power and current handling capability.
