Product Summary
The HD64F2398F20V is a microcomputer (MCU: microcomputer unit). The HD64F2398F20V builts around the H8S/2000 CPU, employing Renesas proprietary architecture, and equipped with peripheral functions on-chip. The HD64F2398F20V CPU has an internal 32-bit architecture, is provided with sixteen 16-bit general registers and a concise, optimized instruction set designed for high-speed operation, and can address a 16-Mbyte linear address space. The instruction set is upward-compatible with H8/300 and H8/300H CPU instructions at the object-code level, facilitating migration from the HD64F2398F20V.
Parametrics
HD64F2398F20V absolute maximum ratings: (1)Power supply voltage, VCC: –0.3 to +7.0 V; (2)Input voltage (except port 4), Vin: –0.3 to + VCC +0.3 V; (3)Input voltage (port 4), Vin: –0.3 to AVCC +0.3 V; (4)Reference voltage, Vref: –0.3 to AVCC +0.3 V; (5)Analog power supply voltage, AVCC: –0.3 to +7.0 V; (6)Analog input voltage, VAN: –0.3 to AVCC +0.3 V; (7)Operating temperature, Topr: Regular specifications: –20 to +75℃; Wide-range specifications: –40 to +85℃; (8)Storage temperature, Tstg: –55 to +125℃.
Features
HD64F2398F20V features: (1)Reprogramming capability Description amended; (2)Depending on the product, the maximum number of times the flash memory can be reprogrammed is either 100 or 1,000.; (3)Reprogrammable up to 100 times: HD64F2398TE, HD64F2398F; (4)Reprogrammable up to 1,000 times: HD64F2398TET, HD64F2398FT.

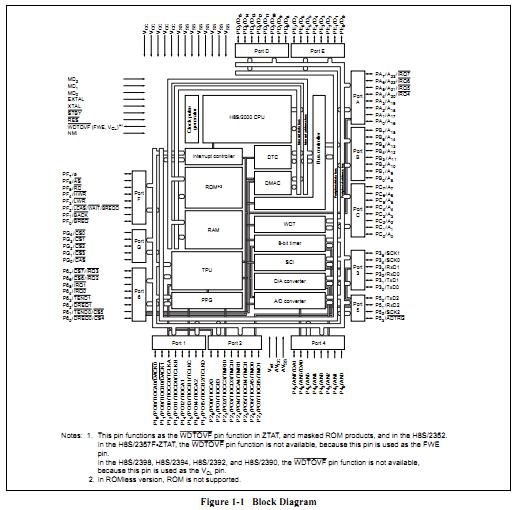

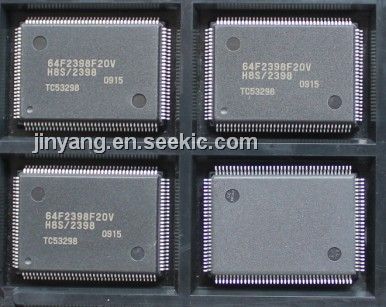

Diagrams
