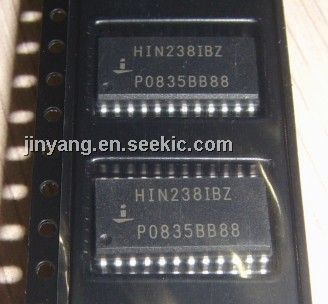

HIN238IBZ

driver, 300Ω, 30V, SOP, HIN238IBZ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.50 / Piece
100 ~ 500 :	1.40 / Piece
500 ~ 1000 :	1.30 / Piece

PartNumber:: HIN238IBZ

Brand:: Intersil Corporation - Intersil | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 500/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Wendy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-16

From Other Seller

Part Number:HIN238IBZ
US $1.30 - 1.50
Quantity:

piece

Product Summary

The HIN238IBZ driver features true TTL/CMOS input compatibility, slewrate- limited output, and 300Ω power-off source impedance. The HIN238IBZ also features hysteresis to greatly improve noise rejection. Applications are (1)computer portable, mainframe, laptop; (2)peripheral printers and terminals; (3)instrumentation; (4)modems.

Parametrics

HIN238IBZ absolute maximum ratings: (1)VCC to Ground: (GND -0.3V)< VCC < 6V; (2)V+ to Ground: (VCC -0.3V)< V+ < 13.2V; (3)V- to Ground : -12V < V- < (GND +0.3V); (4)V+ to V- : 24V; (5)Input Voltages TIN: -0.3V < VIN < (V+ +0.3V), RIN: ±30V; (6)Output Voltages TOUT: (V- -0.3V)< VTXOUT < (V+ +0.3V), ROUT: (GND -0.3V)< VRXOUT < (V+ +0.3V); (7)Maximum Junction Temperature (Plastic Package): 150oC; (8)Maximum Storage Temperature Range: -65°C to 150°C; (9)Maximum Lead Temperature (Soldering 10s): 300°C.

Features

HIN238IBZ features: (1)Meets All RS-232E and V.28 Specifications; (2)Requires Only Single +5V Power Supply; (3)High Data Rate: 120kbps; (4)Onboard Voltage Doubler/Inverter; (5)Low Power Consumption; (6)Low Power Shutdown Function; (7)Three-State TTL/CMOS Receiver Outputs; (8)Multiple Drivers; (9)Multiple Receivers; (10)Pb-Free Plus Anneal Available (RoHS Compliant).
