KU80C186EC25

KU80C186EC25, 16-bit intergration processor, QFP100, 186 Integrated Processor Family, -0.5V to +6.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $21.00~22.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $21.00~22.00

PartNumber:: KU80C186EC25

Brand:: Intel Corporation - Intel | Pack: QFP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Wendy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-06

From Other Seller

Part Number:KU80C186EC25
US $21.00 - 22.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

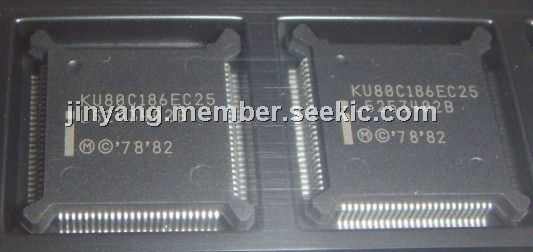

The KU80C186EC25 is a 16-bit intergration processor, which belongs to the 186 Integrated Processor Family. Two serial ports are provided for services such as interprocessor communication, diagnostics and modem interfacing. Four DMA channels allow for high speed data movement as well as support of the onboard serial ports. The KU80C186EC25 provides an on-chip clock generator for both internal and external clock generation. The clock generator features a crystal oscillator, a divideby- two counter and three low-power operating modes.

Parametrics

KU80C186EC25 maximum ratings: (1)Storage Temperature: -65 to +150℃; (2)Case Temperature Under Bias: -65 ℃ to 100℃; (3)Supply Voltage with Respect to VSS: -0.5V to +6.5V; (4)Voltage on Other Pins with Respect to VSS:- 0.5V to VCC + 0.5V.

Features

KU80C186EC25 features: (1)Integrated Feature Set:; (2)Low-Power, Static, Enhanced 8086 CPU CoreTwo Independent DMA Supported UARTs, each with an Integral Baud Rate Generator; (3)Four Independent DMA Channels; (4)22 Multiplexed I/O Port Pins; (5)Two 8259A Compatible Programmable Interrupt Controllers; (6)Three Programmable 16-Bit Timer/Counters; (7)32-Bit Watchdog Timer; (8)Ten Programmable Chip Selects with Integral Wait-State Generator; (9)Memory Refresh Control Unit; (10)Power Management Unit; (11)On-Chip Oscillator; (12)System Level Testing Support.
