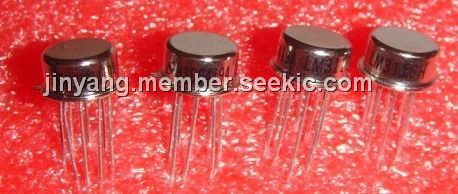

Product Summary

The LM311CH is a voltage comparator that has low input currents. The LM311CH is also designed to operate over a wide range of supply voltages: from standard ±15V operational amplifier supplies down to the single +5V supply used for IC logic. Its output is compatible with RTL-DTL and TTL as well as MOS circuits and can switch voltages up to +50V at output currents as high as 50mA.

Parametrics

LM311CH absolute maximum ratings: (1)Supply voltage: 36 V; (2)Differential input voltage: ±30 V; (3)Input voltage:±15 V; (4)Ground to negative supply voltage 30 V; (5)Output to negative supply voltage:40 V; (6)Output short-circuit duration: 10 s; (7)Voltage at strobe pin VCC:±5 V; (8)Junction temperature: +150℃; (9)Tstg Storage temperature range: -65 to +150℃.

Features

LM311CH features: (1)Maximum input current: 150nA; (2)Maximum offset current: 20nA; (3)Differential input voltage range: ±30V; (4)Power consumption:135mW at ±15V; (5)Supply voltage: +5V to ±15V; (6)Output current: 50mA.

Diagrams

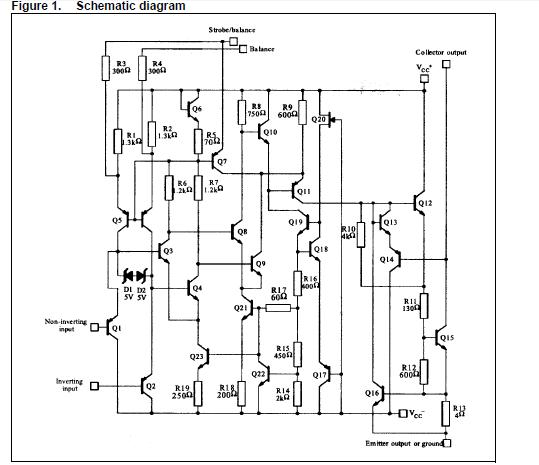

LM311CH block diagram
