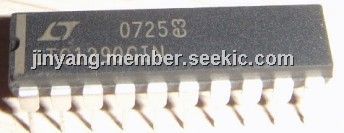

Product Summary
The LTC1290CIN is a data acquisition component which contains a serial I/O successive approximation A/D converter. The LTC1290CIN uses LTCMOSTM switched capacitor technology to perform either 12-bit unipolar or 11-bit plus sign bipolar A/D conversions. The 8-channel input multiplexer can be configured for either single-ended or differential inputs (or combinations thereof). An on-chip sample-and-hold is included for all single-ended input channels. When the LTC1290CIN is idle it can be powered down with a serial word in applications where low power consumption is desired.
Parametrics
LTC1290CIN absolute maximum ratings: (1)Supply Voltage (VCC) to GND or V –: 12V; (2)Negative Supply Voltage (V –): –6V to GND; (3)Voltage: Analog/Reference Inputs: (V–) – 0.3V to VCC + 0.3V; Digital Inputs: – 0.3V to 12V; Digital Outputs: –0.3V to VCC + 0.3V; (4)Power Dissipation: 500mW; (5)Operating Temperature Range: –40℃ to 85℃; (6)Storage Temperature Range: – 65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LTC1290CIN features: (1)Software Programmable Features: Unipolar/Bipolar Conversion; Four Differential/Eight Single-Ended Inputs; MSB- or LSB-First Data Sequence; Variable Data Word Length; Power Shutdown; (2)Built-In Sample-and-Hold; (3)Single Supply 5V or ±5V Operation; (4)Direct Four-Wire Interface to Most MPU Serial Ports and All MPU Parallel Ports; (5)50kHz Maximum Throughput Rate; (6)Available in 20-Lead PDIP and SO Wide Packages.

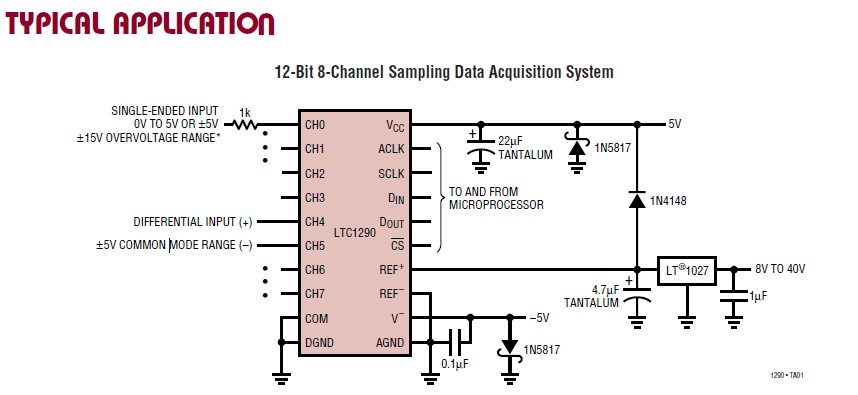

Diagrams
