Product Summary

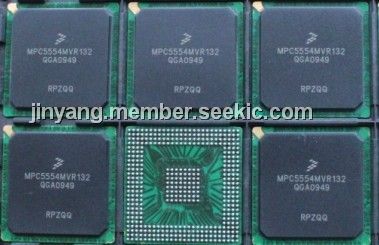

The MPC5554MVR132 microcontroller (MCU) is a member of the MPC5500 family of microcontrollers built on the Power Architectureembedded technology. The MPC5554MVR132 has many new features coupled with high performance CMOS technology to provide substantial reduction of cost per feature and significant performance improvement over the MPC500 family. The host processor core of MPC5554MVR132 complies with the Power Architecture embedded category that is 100% user-mode compatible (including floating point library) with the original PowerPC instruction set. The embedded architecture enhancements improve the performance in embedded applications. The core also has additional instructions, including digital signal processing (DSP) instructions, beyond the original PowerPC instruction set.
Parametrics
MPC5554MVR132 absolute maximum ratings: (1)1.5 V core supply voltage, VDD: –0.3 to 1.7 V; (2)Flash program/erase voltage, VPP: –0.3 to 6.5 V; (3)Flash read voltage, VFLASH: –0.3 to 4.6 V; (4)SRAM standby voltage, VSTBY: –0.3 to 1.7 V; (5)Clock synthesizer voltage, VDDSYN: –0.3 to 4.6 V; (6)3.3 V I/O buffer voltage, VDD33: –0.3 to 4.6 V; (7)Voltage regulator control input voltage, VRC33: –0.3 to 4.6 V; (8)Analog supply voltage (reference to VSSA), VDDA: –0.3 to 5.5 V; (9)I/O supply voltage (fast I/O pads), VDDE: –0.3 to 4.6 V; (10)I/O supply voltage (slow and medium I/O pads), VDDEH: –0.3 to 6.5 V; (11)Maximum DC digital input current (per pin, applies to all digital pins), IMAXD: –2 to 2 mA; (12)Maximum DC analog input current (per pin, applies to all analog pins), IMAXA: –3 to 3 mA; (13)Maximum operating temperature range, Die junction temperature; (14)TJ TL: 50.0℃; (15)Storage temperature range, TSTG: –55.0 to 150.0℃.

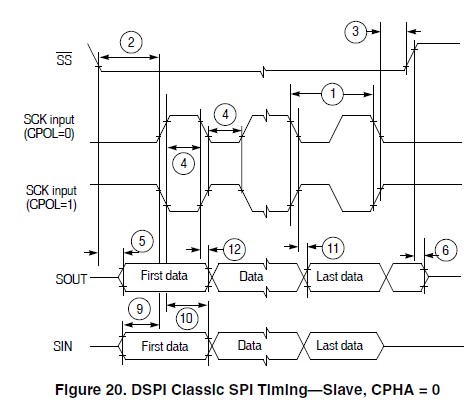

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPC5554MVR132 |
Freescale Semiconductor |
32-bit Microcontrollers (MCU) MPC5554 COPPERHEAD Qorivva |
Data Sheet |
|
|
||||||||||||
|
MPC5554MVR132R2 |
Freescale Semiconductor |
32-bit Microcontrollers (MCU) COPPERHEAD Qorivva |
Data Sheet |
|
|
||||||||||||
