Product Summary

The SP720ABG is an array of SCR/Diode bipolar structures for ESD and over-voltage protection to sensitive input circuits. The SP720ABG has 2 protection SCR/Diode device structures per input. A total of 14 available inputs can be used to protect up to 14 external signal or bus lines. Applications are (1)Microprocessor/Logic Input Protection; (2)Data Bus Protection; (3)Analog Device Input Protection; (4)Voltage Clamp.

Parametrics

SP720ABG absolute maximum ratings: (1)Continuous Supply Voltage, (V+)- (V-): +35V; (2)Forward Peak Current, I IN to V CC , I IN to GND (Refer to Figure 6): ± 2A, 100 μ s; (3)Maximum Storage Temperature Range: -65 o C to 150°C; (4)Maximum Junction Temperature (Plastic Package): 150°C; (5)Maximum Lead Temperature (Soldering 10s): 300°C.

Features

SP720ABG features: (1)ESD Interface Capability for HBM Standards; (2)High Peak Current Capability; (3)Designed to Provide Over-Voltage Protection; (4)Fast Switching: 2ns Risetime; (5)Low Input Leakages: 1nA at 25 °C(Typ); (6)Low Input Capacitance: 3pF (Typ); (7)An Array of 14 SCR/Diode Pairs; (8)Operating Temperature Range : -40 o C to 105 °C.

Diagrams

SP720ABG pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

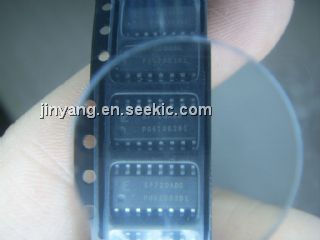

SP720ABG
SP720ABG
Littelfuse
TVS Diode Arrays 35V(SUP) 2A(I(IN)) 130THRM RES
Data Sheet
0-1: $1.86
1-10: $1.66
10-100: $1.36
100-250: $1.22
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SP720ABG
SP720ABG
Littelfuse
TVS Diode Arrays 35V(SUP) 2A(I(IN)) 130THRM RES
Data Sheet
0-1: $1.86
1-10: $1.66
10-100: $1.36
100-250: $1.22
SP720ABT
SP720ABT
Littelfuse
TVS Diode Arrays SP720ABT
Data Sheet
Negotiable
SP720APP
SP720APP
Littelfuse
TVS Diode Arrays 14 CH DIODE ARRAY
Data Sheet
0-1: $1.86
1-10: $1.66
10-100: $1.36
100-250: $1.22
SP721ABT
SP721ABT
Littelfuse
TVS Diode Arrays SP721ABT
Data Sheet
0-1540: $0.73
1540-2000: $0.60
2000-2500: $0.60
2500-5000: $0.57
SP721APP
SP721APP
Littelfuse
TVS Diode Arrays 6 CH DIODE ARRAY
Data Sheet
0-1: $1.50
1-10: $1.38
10-100: $1.02
100-250: $0.90
SP725ABTG
SP725ABTG
Littelfuse
TVS Diode Arrays 6Ch High Energy SCR
Data Sheet
0-1: $1.94
1-10: $1.74
10-100: $1.42
100-250: $1.29
