Product Summary

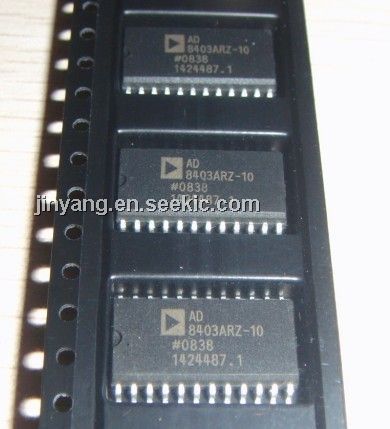

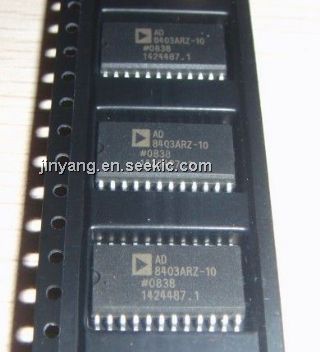

The AD8403ARZ10 is a Digital Potentiometer.It provides a single, dual or quad channel, 256 position digitally controlled variable resistor (VR) device. The AD8403ARZ10 performs the same electronic adjustment function as a potentiometer or variable resistor. The device contains four independent variable resistors in 24-lead PDIP, SOIC and TSSOP packages. The applications of the AD8403ARZ10 include: Mechanical Potentiometer Replacement, Programmable Filters, Delays, Time Constants, Volume Control, Panning, Line Impedance Matching, Power Supply Adjustment.

Parametrics

AD8403ARZ10 absolute maximum ratings: (1)VDD to GND: –0.3 V, +8 V; (2)VA, VB, VW to GND: 0 V, VDD; (3)AX–BX, AX–WX, BX–WX: ±20 mA; (4)Digital Input and Output Voltage to GND: 0 V, +8 V; (5)Operating Temperature Range: –40℃ to +85℃; (6)Maximum Junction Temperature (TJ max): +150℃; (7)Storage Temperature: –65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec): +300℃; (9)Package Power Dissipation: (TJ max–TA)/θJA.

Features

AD8403ARZ10 features: (1)256 Position; (2)Replaces 1, 2 or 4 Potentiometers; (3)1 kΩ, 10 kΩ, 50 kΩ, 100 kΩ; (4)Power Shut Down—Less than 5 μA; (5)3-Wire SPI Compatible Serial Data Input; (6)10 MHz Update Data Loading Rate; (7)+2.7 V to +5.5 V Single-Supply Operation; (8)Midscale Preset.

Diagrams

AD8403ARZ10 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8403ARZ10
AD8403ARZ10

IC POT DIG QUAD 10K 8BIT 24SOIC
Data Sheet
0-1: $3.86
1-10: $3.48
10-100: $2.86
100-250: $2.63
250-500: $2.39
500-1000: $2.08
1000-2500: $2.06
AD8403ARZ100
AD8403ARZ100

IC POT DGTL 8BIT 100K 4CH 24SOIC
Data Sheet
0-1: $3.86
1-10: $3.48
10-100: $2.86
100-250: $2.63
250-500: $2.39
500-1000: $2.08
1000-2500: $2.06
AD8403ARZ100-REEL
AD8403ARZ100-REEL

IC DCP QUAD 100K 24-SOIC
Data Sheet
0-1000: $2.08
AD8403ARZ10-REEL
AD8403ARZ10-REEL

IC POT DIG QUAD 10K 8BIT 24SOIC
Data Sheet
0-1000: $2.08
