Product Summary

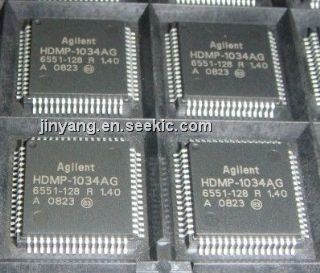

The HDMP-1034AG transmitter is used together to build a high-speed data link for point-to-point communication. The HDMP-1034AG is housed in standard plastic 64 pin PQFP packages. A user control space is also provided. If TXCNTL is asserted on the Tx chip, the least significant 14 bits of the data will be sent and the RXCNTL line on the Rx chip will indicate the data is a Control Word. Applications are (1)cellular base station; (2)ATM switch; (3)backplane/bus extender; (4)video, image acquisition; (5)point to point data link; (6)implement SCI-FI standard.
Parametrics
HDMP-1034AG absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to 5.0V; (2)VIN,TTL TTL Input Voltage: -0.7 to 5.5V; (3)VIN,BLL H50 Input Voltage: 2.0 VCC; (4)IO,TTL TTL Output Source Current: 13mA; (5)Tstg Storage Temperature: -65 to +150°C; (6)TJ Junction Temperature: 0 to +150°C; (7)Tmax Maximum Assembly Temperature (10 seconds maximum): +260°C.
Features
HDMP-1034AG features: (1)3.3 V supply, low power dissipation 660 mW Tx, 792 mW Rx; (2)On-chip encode/decode using Conditional Inversion Master Transition (CIMT)protocol; (3)1: N broadcast ready configurable receiver inputs allow multi-point data broadcast using a single transmitter; (4)Parallel Automatic Synchronization System (PASS)allows receiver to read recovered words with local reference clock; (5)Robust simplex mode; (6)Wide range serial rate 260-1400 MBaud (user selectable); (7)5 V tolerant TTL interface 16 or 17 Bits wide; (8)Low cost 64 pin plastic package 14x14 mm2 PQFP.

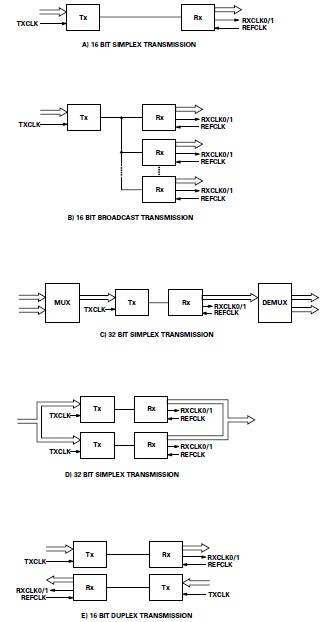

Diagrams
