Product Summary
The MAX793SESE+ is a 3.0V/3.3V Adjustable Microprocessor Supervisory Circuit. It monitors and controls the activities of +3.0V/+3.3V μPs by providing backup-battery switchover, among other features such as low-line indication, μP reset, write protection for CMOS RAM, and a watchdog. The backup-battery voltage of the MAX793SESE+ can exceed VCC, permitting the use of 3.6V lithium batteries in systems using 3.0V to 3.3V for VCC. The applications of the MAX793SESE+ include: Battery-Powered Computers and Controllers, Embedded Controllers, Intelligent Controllers, Critical μP Power Monitoring, Portable Equipment.
Parametrics
MAX793SESE+ absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC: -0.3V to 6.0V, VBATT: -0.3V to 6.0V, All Other Inputs: -0.3V to the higher of VCC or VBATT; (2)Continuous Input Current VCC: 200mA, VBATT: 50mA, GND: 20mA; (3)Output Current VOUT: 200mA, All Other Outputs: 20mA; (4)Operating Temperature Ranges: 0℃ to +70℃; (5)Storage Temperature Range: -65℃ to +160℃; (6)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX793SESE+ features: (1)Precision Supply-Voltage Monitor: Fixed Reset Trip Voltage; (2)Guaranteed Reset Assertion to VCC = 1V; (3)Backup-Battery Power Switching—Battery Voltage Can Exceed VCC; (4)On-Board Gating of Chip-Enable Signals—7ns Max Propagation Delay; (5)Battery Freshness Seal; (6)Uncommitted Voltage Monitor for Power-Fail or Low-Battery Warning; (7)Independent Watchdog Timer (1.6sec timeout); (8)Manual Reset Input.

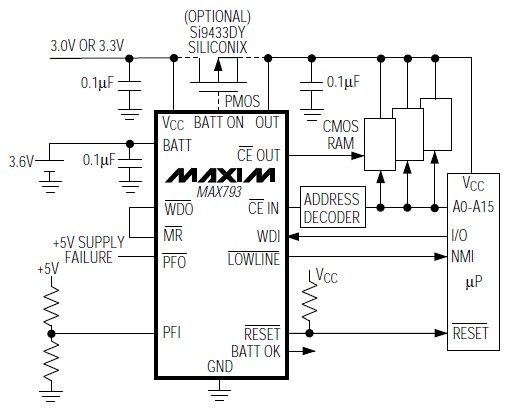

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX793SESE+ |
Maxim Integrated Products |
Supervisory Circuits 3/3.3/AdjV MPU Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX793SESE+T |
Maxim Integrated Products |
Supervisory Circuits 3/3.3/AdjV MPU Supervisor |
Data Sheet |
|
|
||||||||||||
