Product Summary

The MC1496BDG is a Balanced Modulator. The device is designed for use where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical applications of the MC1496BDG include suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications.

Parametrics

MC1496BDG absolute maximum ratings: (1)Applied Voltage, △V: 30 Vdc; (2)Differential Input Signal, V8 - V10: 5.0Vdc; V4 - V1: ±(5+I5Re)Vdc; (3)Maximum Bias Current, I5: 10 mA; (4)Thermal Resistance, Junction-to-Air, RθJA: 100℃/W; (5)Operating Ambient Temperature Range, TA: -40 to +125℃; (6)Storage Temperature Range, Tstg: -65 to +150℃; (7)Electrostatic Discharge Sensitivity (ESD), Human Body Model (HBM): 2000V; Machine Model (MM): 400V.

Features

MC1496BDG features: (1)Excellent Carrier Suppression -65 dB typ @ 0.5 MHz; -50 dB typ @ 10 MHz; (2)Adjustable Gain and Signal Handling; (3)Balanced Inputs and Outputs; (4)High Common Mode Rejection -85 dB Typical; (5)This Device Contains 8 Active Transistors; (6)Pb-Free Package is Available.

Diagrams

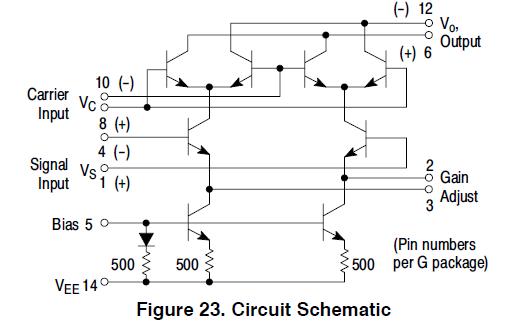

MC1496BDG circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC1496BDG
MC1496BDG
ON Semiconductor
Modulator / Demodulator Balanced Mod/DeMod
Data Sheet
0-1: $0.67
1-25: $0.56
25-100: $0.48
100-500: $0.39
